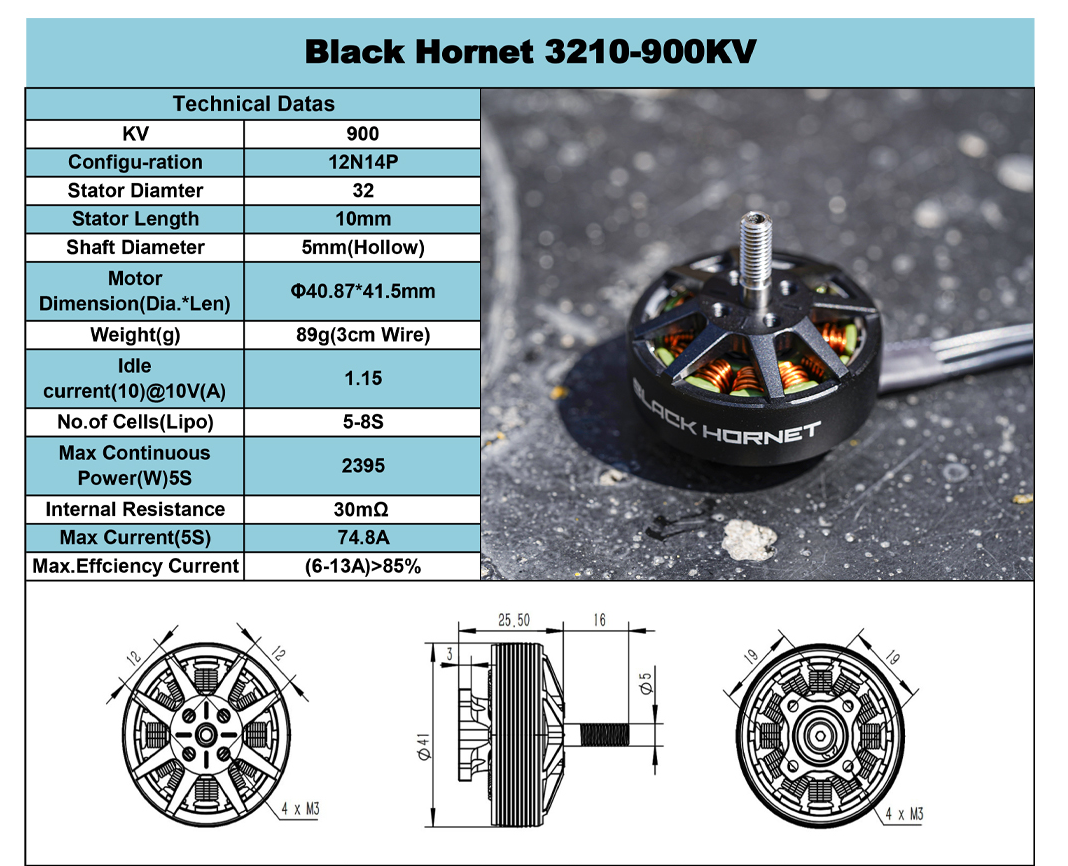

| KV Rating: | 900 |
| Configuration: | 12N14P |
| Stator Diameter: | 32mm |
| Stator Length: | 10mm |
| Shaft Diameter: | 5mm (Hollow) |
| Motor Dimensions (Dia. × Len): | Φ40.87 × 41.5mm |
| Weight: | 89g (including 3cm wire) |
| Idle Current (10) @ 10V (A): | 1.15A |
| Number of Cells (LiPo): | 5-8S |
| Max Continuous Power (W) 5S: | 2395W |
| Internal Resistance: | 30mΩ |
| Max Current (5S): | 74.8A |
| Max Efficiency Current: | (6-13A) >85% |
