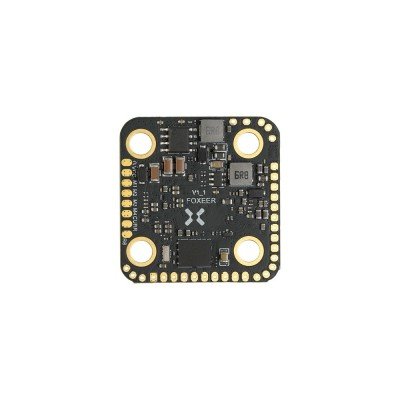

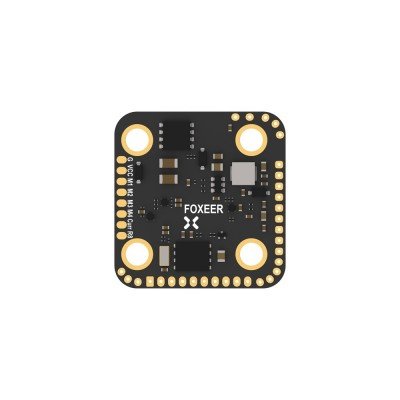

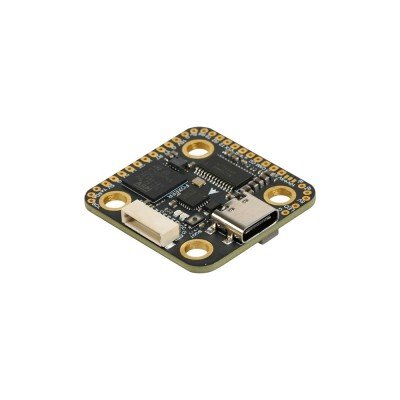

| Model: | Foxeer H7 |
| CPU: | STM32H743 |
| Gyro: | MPU6000 |
| Barometer: | DPS310 |
| Power Supply: | 4~8S Lipo |
| BEC Output: | DC5V/2A; DC10V/2A |
| OSD: | BF OSD |
| Black Box: | 16M Flash Memory |
| UART: | 6 Sets+Rx8 |
| ESC Telemetry: | RX8 |
| Buzzer: | YES |
| Smart Audio: | YES |
| LED: | 1 Set 2812 LED |
| USB: | Type-C |
| Firmware: | BetaFlight:FOXEERH743 |
| Size: | 30*31mm |
| Mounting Hole: | 20X20mm,Φ4mm |
| Weight(g): | 5.6g |
| Working Temperature: | -20℃ ~ +55℃ |
| Working Humidity: | 20～95% |
| Storage Temperature: | -20℃ ~ +70℃ |
| Package Includes: | 1*FC, 4*Rubbers Columns |
